HansenMillennium®
HansenMillennium® offers unique solutions with the world's slimmest aluminium profiles for any building type.
The slim profiles allow a maximum amount of light and energy into the building.
The system combines classic architecture with modern features, and the minimalist expression with narrow frames ensures maximum utilization of daylight in the building.
This is the window system everyone falls in love with at first sight!
Hansen Millennium® is a unique window and door system with extremely slim profiles.
The system combines classical architecture and modern design and is suitable for all types of buildings. The minimalistic design with the slim profiles enables maximized light and energy transmittance.

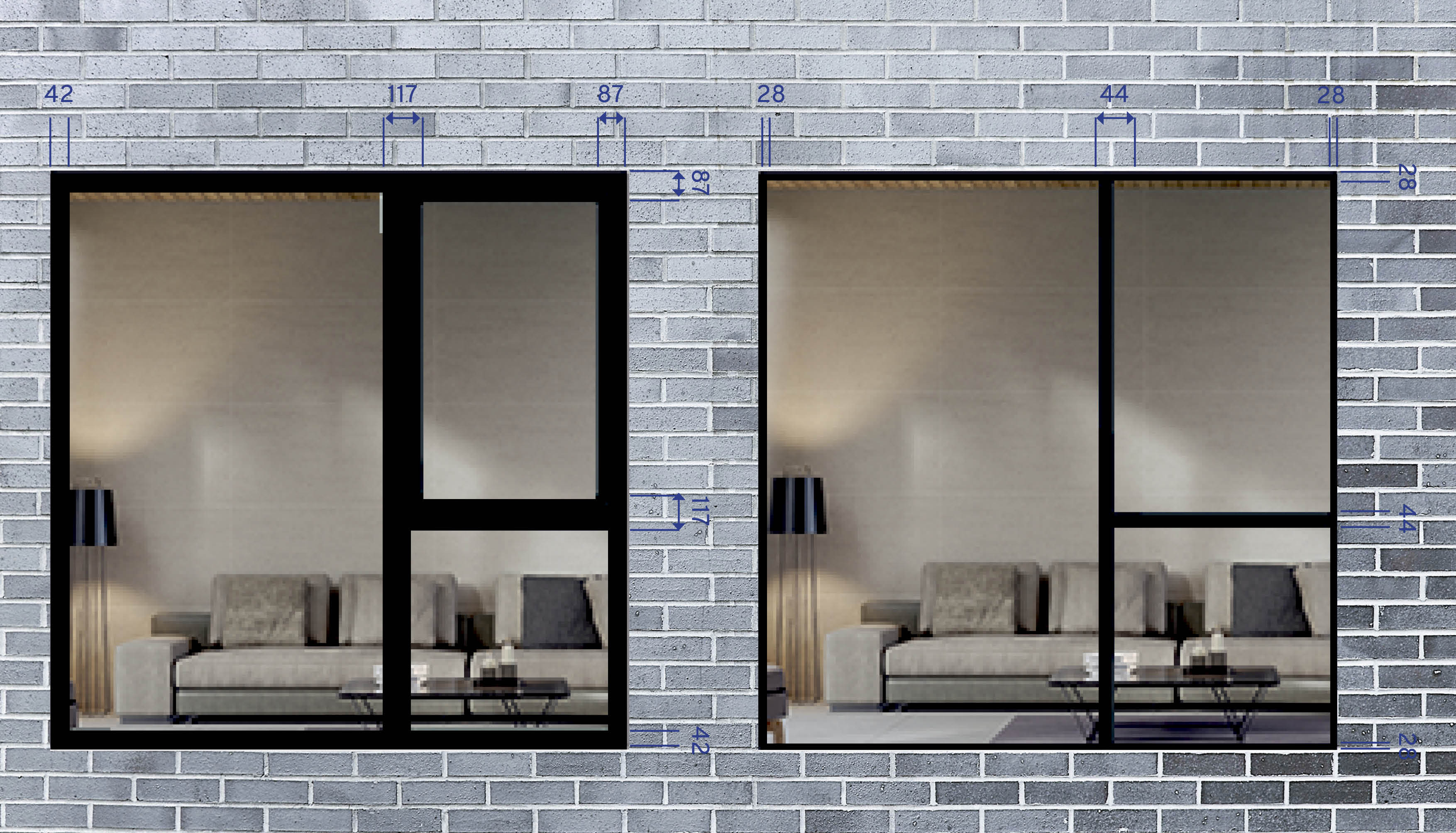

The sightline of the windows is down to 28,5mm.
Product possibilities:
- Windows
- Doors
- Smaller facades (not curtain walling!)
- 2+1
- EI60 (fixed partitions)
The system can be used with vents for single, double and triple glazing units up to 60mm.
Tilt/turn vents are available up to 2,5 m2 and 100 kg sash. The hardware for integrated vents is as standard concealed but also available as visible.
Doors are available with door closers both concealed and visible.
Hansen Millennium is listed in the database for building products that can be used in Nordic Swan Ecolabelled buildings.
- Extremely slim profiles

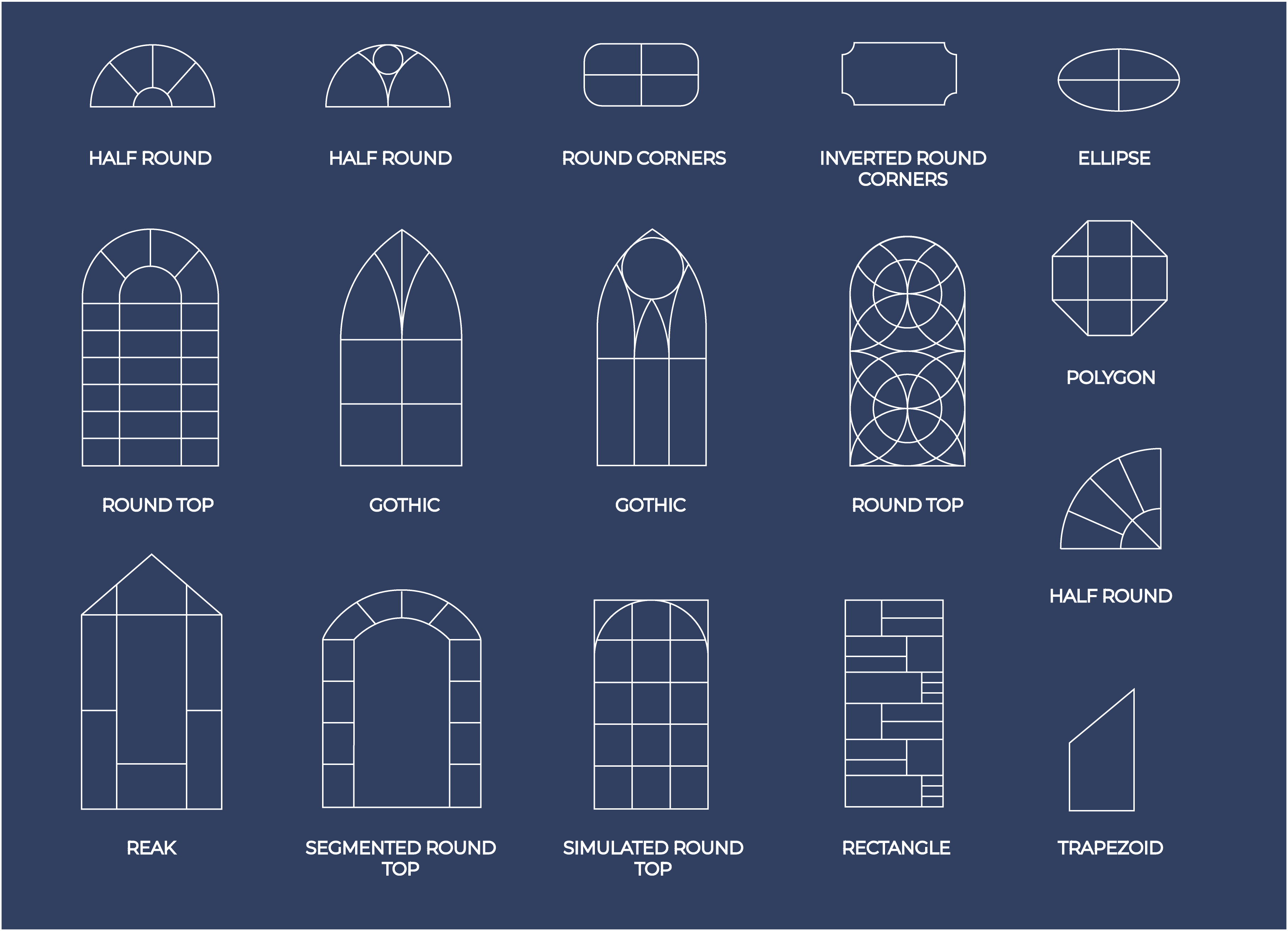

- Can be constructed in all shapes, such as. right-angled, round or with arcs
- Possibility of two-coloring with difference between interior and exterior color
- Maximized daylight and g-value
- Adjustable, concealed swivel brackets replace visible ventilation grills in the window sill, and maintain the thermal and acoustic insulation
- System with hidden drawbars allows larger spans in facades
- Integrated thermal brake
- Hidden hinges
- Hidden drains
- Hidden openings glued from the factory - fixed fields glasses on site.
The system can be used for single, double and triple glazing up to 61mm
Tilt/turn vents standard up to 100kg/2 m2 and up to 3 m2 and 150kg at special conditions.
Integrated vents and hardware are consealed but also available as visible.
When low environmental impacts are required Hansen will be able to supply the aluminium profiles in special aluminium produced with renewable energy. This reduces the impact from the profiles with more trhan 75% compared to standard aluminium (HYDRO REDUXA®)
Construction
The static properties of the profiles are optimized, as the construction of the aluminium profiles and the thermal break contributes to the strength.
Design
Max dim sash: W to 1400mm (only tilt L to 2300mm), H to 2800
Max dim single door: W to 1500mm, H to 2350mm
Max dim terrace door: W to 1500mm, H to 3000mm
Profiles
The system supplier HansenConcepts is ISO 9001 certified.
The system includes many profile variations for different visdual expressions. Can be surface treated as desired in different colours outside and inside.
Insulating zone
The profiles are energy optimized with a specially designes thermal break between the aluminium profiles. This breaks the cold bridge throughout the entire length of the profiles.
Variants
HansenMillennium is classified in Class RC2 in terms of burglary resistance.
HansenMillennium can be carried as CE-marked natural smoke and heat exhaust.
Air permeability: Class 4
Water tightness: E 1200
Resistance to wind load: C3
| System | DoP | U-værdi |
| HansenMillennium G40 | 42-G40-2 | 0,80 W/m2K |
| HansenMillennium G24 | 42-G24A-2 | 1,39 W/m2K |
| Hansen Millennium G24A | 42-G24A-2 | 0,97 W/m2K |
| HansenMillennium G30 | 42-G30-2 | 1,39 W/m2K |
| HansenMillennium G30A | 42-G30A-2 | 0,91 W/m2K |
| HansenMillennium G40A | 42-G40A-2 | 0,82 W/m2K |
| HansenMillennium AU40 | 42-AU40-1 | 0,82 W/m2K |
| HansenMillennium Door | - | 0,94 W/m2K |
| HansenMillennium EI60 | 42-EI60-1 | 1,0 W/m2K |
Here you can download a selection of standard drawings of doors, windows and facades made with the HansenMillennium® system.
HansenMillennium - Windows - ACAD
HansenMillennium - Windows - PDF
HansenMillennium - Windows - REVIT
HansenMillennium - Doors - ACAD
HansenMillennium - Doors - PDF
HansenMillennium - Doors - REVIT
It is recommended to save ZIP files to local disk before unpacking.
We specialize in project customization and continuously develop new profiles in all systems.
Contact our sales department so we can help targeted profile sections for your project.
